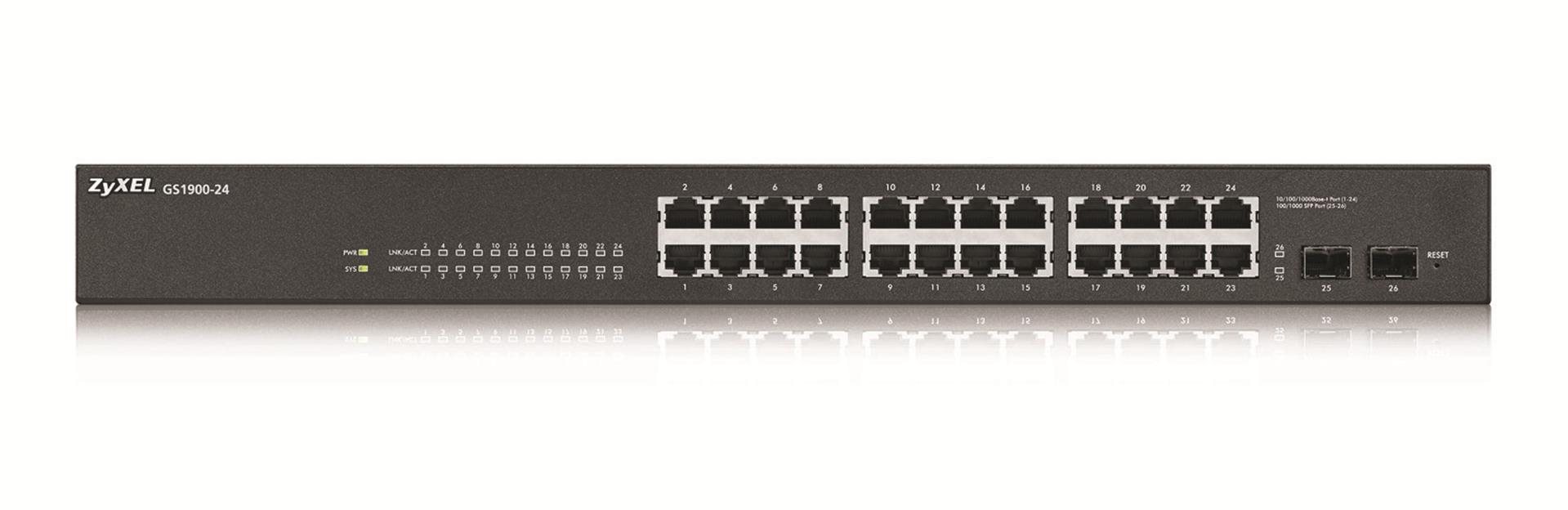

ZYXEL 24xGb 2xSFP fanless rack web sw.GS1900-24 v2

ZyXEL GS1900-24
26-port Gigabit Web Smart switch: 24x Gigabit metal + 2x SFP, IPv6, 802.3az (Green), Easy set up wizard, fanless, 19″ rackmount

OVERVIEW
The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network viac fexibility and connectivity. 1900 Series zahŕňajú osem (8) modelov—GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 a GS19. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. V prípade, že modely PoE modelu GS1900-8HP/24HP/48HP Gigabitové spínače počítajú s IEEE 802.3at Power over Ethernet (PoE) Plus štandard. Dokončené GS1900 Séria má byť dizajnovaný s užitočnými vlastnosťami a rozšírené performance, ktoré vytvárajú vaše siete s rýchlosťou a bezpečnosťou, ako aj silné fungovanie vo svojich environmentoch.
• 10/100/1000 Mbps GbE ports
• Easy browser-based switch management
• Quick and easy set up wizard
• Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)
• Fanless design
• Green Ethernet IEEE 802.3az support and intelligent ZyXEL green features

SPECIFICATIONS
PORT DENSITY
10/100/1000BASE-T, fixed
• 24

10/100/1000BASE-T, PoE, fixed
• –
SFP 100/1000 Mbps
• 2

PERFORMANCE
Switching capacity (Gbps)
• 52

Switch forwarding rate (Mpps)
• 39

Packet buffer (byte)
• 525 K

MAC address
• 8 K

Jumbo frame (byte)
• 9K

POWER
Input voltage of AC
• 100 – 240 V AC, 50/60 Hz

Max. power consumption (watt)
• 16

PoE power budget (watt)
• –

PHYSICAL SPECIFICATIONS
Item dimensions (WxDxH) (mm)
• 440 x 131 x 44

Item weight (kg)
• 2.09

Packing dimension (WxDxH) (mm)
• 561 x 217 x 82

Packing weight (kg)
• 2.85

ENVIRONMENTAL SPECIFICATIONS
Operating temperature
• 0°C až 50°C

Storage temperature
• -40 °C až 70 °C

Operating humidity
• 10% až 95% (non-condensing)

MTBF (hr)
• 432,673

Heat dissipation (BTU/hr)
• 55
