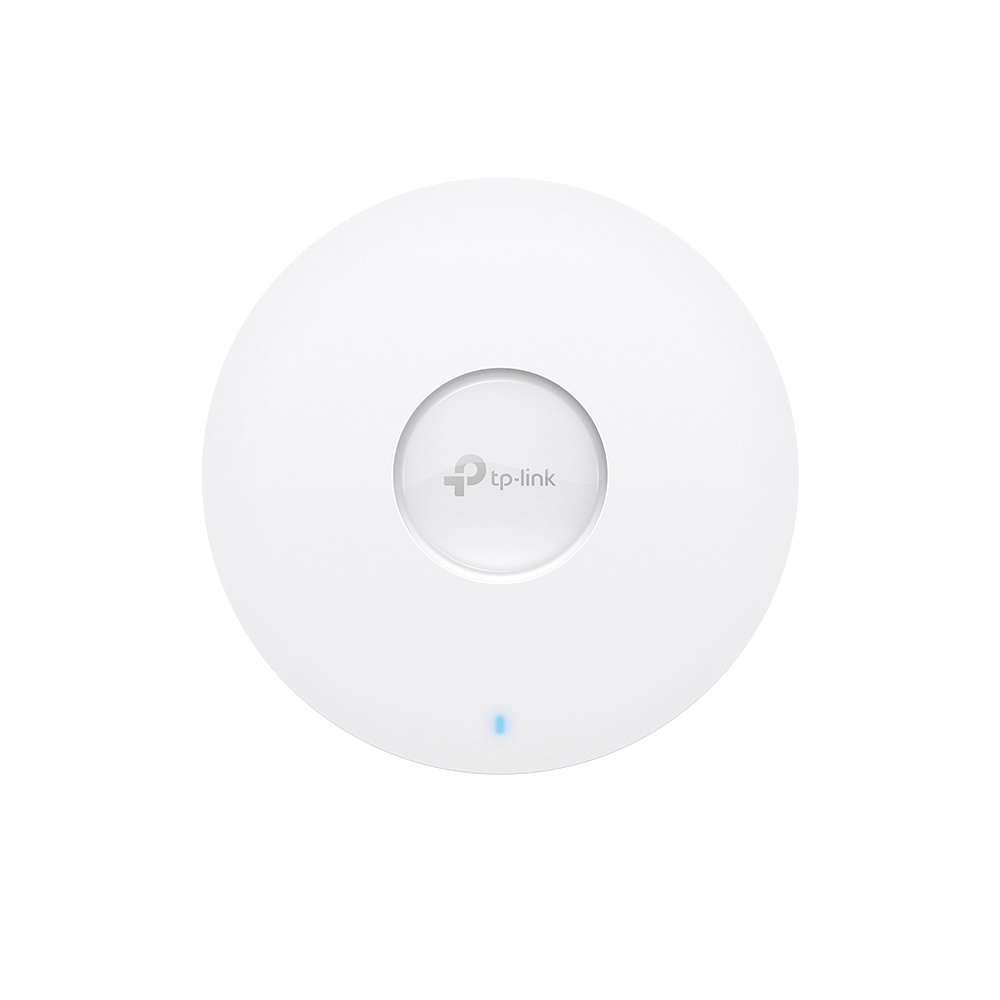

TP-Link EAP653 UR AX3000 WiFi6 Access Point

EAP653 UR
Prístupový bod AX3000 Wi-Fi 6 pre montáž na strop
Funkcia
*Veľmi rýchle WiFi 6 rýchlostí: 2402 Mb/s na 5 GHz t+ 574 Mb/s na 2,4 GHz†
*Bezdrôtové pokrytie s mimoriadnym dosahom vďaka väčšiemu počtu antén s vyšším vysielacím výkonom
*Podpora technológiou WiFi 6, ako je HE160, 1024-QAM atď‡
*Pokročilé funkcie: Omada Mesh, bezproblémový roaming atď§
*Napájanie PoE+: Podporuje štandard 802.3at PoE+ aj jednosmerný prúd (adaptér nie je súčasťou dodávky)
*Veľmi tenký dizajn: Elegantný dizajn ?16cm × 3,3cm prináša väčšiu agilitu.
*Integrácia s platformou Omada SDN pre centralizovanú správu

Špecifikácia

Hardvér
Interface
*1× Gigabit PoE+ Port
Button
*Reset
Power Supply
*802.3at PoE
*12V DC / 1.5 A (Power Adapter IS NOT included)
*48V Passive PoE
Power Consumption
*EÚ: 14.2 W
Dimensions ( W x D x H )
*160 × 160 × 33.6 mm)*
Antenna Type
*Internal Omni
*2.4 GHz: 2× 5 dBi
*5 GHz: 3× 5 dBi
Mounting
*Ceiling /Wall Mounting (Kits included)
*Junction Box Mounting
Bezdrôtové
Coverage
*140 m²
Concurrent Clients
*250+
Wireless Standards
*IEEE 802.11ax/ac/n/g/b/a
Frequency
*2.4 GHz a 5 GHz
Signal Rate
*5 GHz: Up to 2402 Mbps
*2.4 GHz: Up to 574 Mbps
Wireless Functions
*1024-QAM
*4× Longer OFDM Symbol
*OFDMA
*Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
*Enable/Disable Wireless Radio
*Automatic Channel Assignment
*Transmit Power Control (Adjust Transmit Power on dBm)
*QoS(WMM)
*MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
*HE160 (160 MHz Bandwidth)
*Seamless Roaming(802.11k/v/r)
*Omada Mesh§
*Band Steering
*Load Balance
*Airtime Fairness
*Beamforming
*Rate Limit
*Reboot Schedule
*Wireless Schedule
*Wireless Statistics založený na SSID/AP/Client
Wireless Security
*Captive Portal Authentication
*Access Control
*Wireless Mac Address Filtering
*Wireless Isolation Between Clients
*SSID to VLAN Mapping
*Rogue AP Detection
*802.1X Support
*WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
*CE:
*<20 dBm(2.4 GHz, EIRP) *<23 dBm(5 GHz, Band1 a Band2, EIRP) *<29 dBm(5 GHz, Band3, EIRP) *FCC: *<26 dBm (2.4 GHz) *<27 dBm (5 GHz) Management
*Omada App, Centralized Management, Cloud Access, SNMP, Web-based Management and more.
