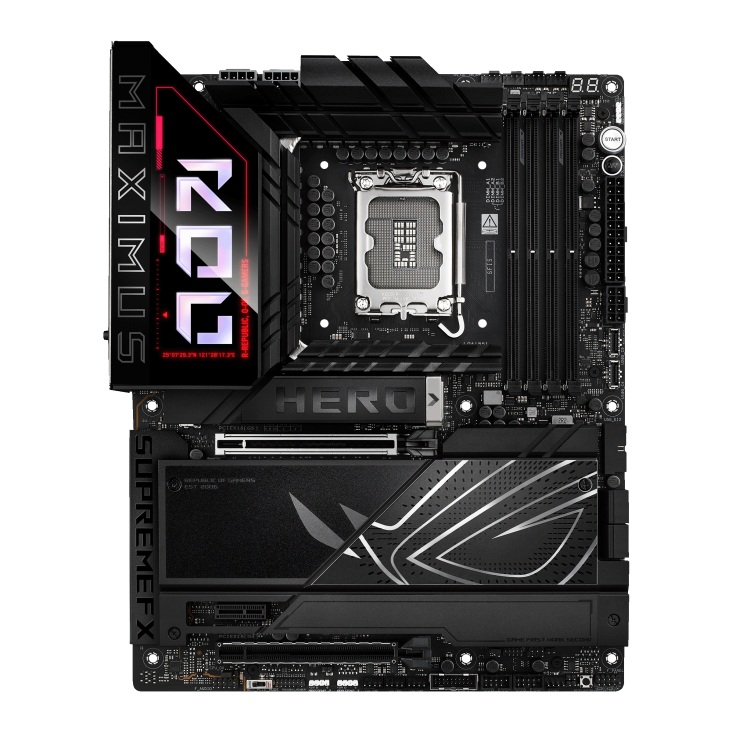

ASUS ROG MAXIMUS Z890 HERO BTF

ROG MAXIMUS Z890 HERO

Chipset: Intel Z890 Chipset

Rozmerový formát: ATX ( 30.5 cm x 24.4 cm )
Podpora pre procesory:  Intel® Core™ Ultra(Series 2)

Pätica procesora:  Intel® LGA 1851

Pamäť:

*DDR5, 4X DIMM

Intel® Core™ Ultra procesory (Series 2):

*M.2_1 slot (Key M), typ 2242/2260/2280/22110 (podporuje PCIe 5.0 x4 mode)
*M.2_2 slot (Key M), typ 2242/2260/2280 (podporuje PCIe 4.0 x4 mode)
*M.2_3 slot (Key M), typ 2242/2260/2280 (podporuje PCIe 5.0 x4 mode)
*M.2_4 slot (Key M), typ 2242/2260/2280 (podporuje PCIe 5.0 x4 mode)

Intel® Z890 Chipset:

*M.2_5 slot (Key M), typ 2242/2260/2280 (podporuje PCIe 4.0 x4 mode)
*M.2_6 slot (Key M), typ 2242/2260/2280 (podporuje PCIe 4.0 x4 mode)
*4 × SATA 6 Gb/s porty
*SlimSAS konektor podporuje PCIe 4.0 x4 režim alebo až 4 SATA zariadenia pomocou adaptér kábla. Kábel sa predáva samostatne.

Grafické porty:

*1x HDMI
*2x Intel Thunderbolt 4 porty (USB Type-C)

Zvuková karta:

*ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Ethernet:

*1 x Intel® 2.5Gb Ethernet
*1 x Realtek 5Gb Ethernet
*ASUS LANGuard

WLAN + Bluetooth:

*Wi-Fi 7
*2×2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band
*Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
*Bluetooth® v5.4

Rozširujúce sloty:

Intel® Core™ Ultra Processors (Series 2):

*1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel&Nbsp;Z890 Chipset:

*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot

RAID radič:

Intel® Rapid Storage Technology podporuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot pripojený k CPU podporuje iba RAID 0/1/5.

USB:
Zadné USB:

*2 x Thunderbolt™ 4 porty (2 x USB Type-C®)
*5 x USB 10 Gbps ports (4 x Type-A + 1 x USB Type-C®)
*4 x USB 5Gbps porty (4 x Type-A)

Predné USB:

*1 x 20 Gbps USB konektor (support USB Type-C® s 60 W PD/QC4+)
*1 x USB 10Gbps konektor (supports USB Type-C®)
*2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C® power delivery output: max. 5V/3A

USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS: 3.3–21V max. 3A

Interné porty:

*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
*1 x W_PUMP+ headers

Napájanie

*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connectors
*1 x 8-pin PCIe Power connector

Súvisiace s úložiskom

*6 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*1 x SlimSAS connector

USB

*1 x 20 Gbps USB konektor (supports USB Type-C®)
*1 x USB 10Gps konektor (supports USB Type-C® )
*2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Ostatné

*3 x Addressable Gen 2 headers
*1 x Alteration PCIe mode switch
*1 x FlexKey button
*1 x Front Panel Audio header (F_AUDIO)
*1 x ReTry button
*1 x Štart button
*1 x 10-1 pin System Panel header
*1 x Thermal Sensor header
*1 x Thunderbolt™ (USB4®) header

Porty na zadnom paneli:

*2 x Thunderbolt™ 4 USB Type-C® ports
*5 x USB 10 Gbps ports (4 x Type-A + 1 x USB Type-C®)
*4 x USB 5Gbps porty (4 x Type-A)
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 2.5Gb Ethernet port
*1 x Realtek 5Gb Ethernet port
*2 x Gold-plated audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack™ button
*1 x Clear CMOS button

BIOS:

*256 Mb Flash ROM, UEFI AMI BIOS

Príslušenstvo:
Káble:

*1 x ARGB RGB extension cable
*4 x SATA 6Gb/s cables

Dodatočná chladiaca súprava:

*1 x DDR5 fan holder
*1 x Thermal pad pre M.2 22110

Iné:

*1 x ASUS WiFi Q-Antenna
*1 x Q-connector
*1 x M.2 Q-Latch package
*3 x M.2 Q-Slide packages
*1 x ROG stickers
*6 x M.2 rubber packages
*1 x ROG thank you card
*1 x ROG Bottle Opener

Odkaz na stránku výrobcu: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero-btf/spec/
